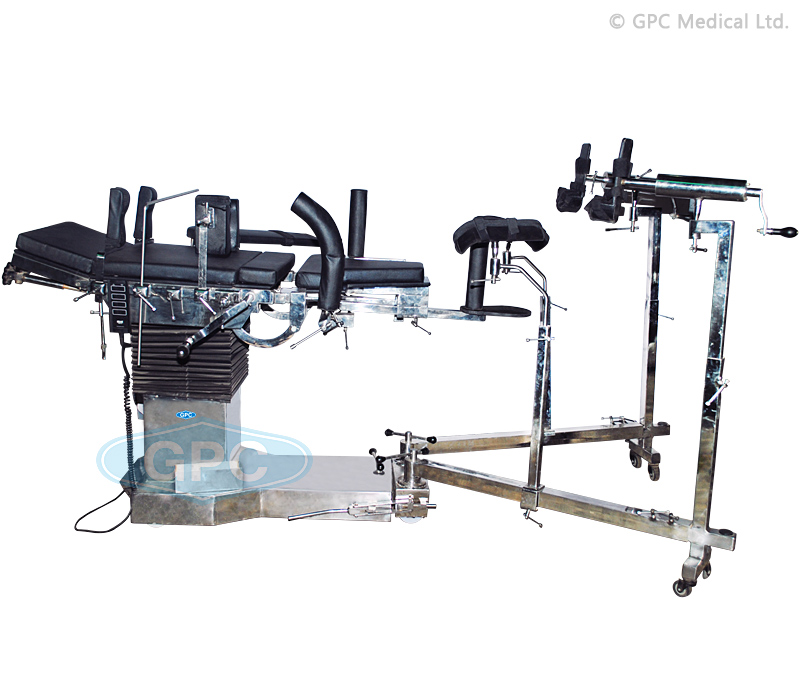

Operating Table For C-arm-electromechanical

Model No: GHF160.01

Description: Operating Table for C-Arm-Electromechanical


Operating Table for C-Arm-Electromechanical

Operating Table is a fully Multi Function System equipped with a C-ARM photography function. This
multi purpose table is designed to provide perfect solution to various types of surgery.


  • Operating Table undergoes strict safety inspections and is designed to run at low voltage for safety.
  • Six section translucent top radiographic sheet thickness 12 mm.
  • The table height can be adjusted between 762mm and 1067mm for best posture during surgery.
  • Each position is set by the hand switch controller & the operation buttons.
  • Base column covered with Stainless Steel Panel.
  • An emergency power supply is added for use during Power outages. (Optional)
  • Rubberized mattress thickness 5cm.
  • The eccentrically positioned table top, without cross members, to optimize image intensifier
  • accessibility for both A/Pand Lateral exposures.
  • Five section table top made of radio translucent material for fluoroscopic capability allows
  • excellent patient positioning characteristics.
  • Interchangeable Head & Leg sections allow full table length use of image intensification.
  • Built-in Kidney elevator.
  • Operating positions including Trendelenburg, Reverse Trendelenburg, Lateral Tilt, Lithotomy,
    Chair and Break-back etc. Can all be easily controlled from side-end by working of different
  • A strong and sturdy base incorporating four swivel castors with independent locking system
    ensures stability and smooth movements.
  • Base and column cover are made of Stainless Steel for durability and easy cleaning. Rubber
    Bellow to prevent ingress of water & dust into hydraulic system.
  • Stainless Steel side rails with clamps accept all standard accessories


  Table Top

  L 193cm x W 53.3cm

  UP-Down Movement

  76.2- 106.7cm

  Lateral Tilt

  20° both sides

  Kidney Section up


  Trendelenburg Position


  Reverse Trendelenburg Position


  Back Section Refraction

  80° UP/ 15° DOWN

  Adjustable height

  78cm to 94m
